Prophesee Evaluation Kits are your perfect gateway to Event-Based Vision.
To meet your evaluation needs, we offer two types of evaluation kits – USB Cameras for plug-and-play PC evaluation and Embedded Starter Kits for building custom embedded systems.
They feature the world’s smallest and most power-efficient Event-based vision sensor GenX320 (320x320px), and the breakthrough IMX636 (1280x720px) realized in collaboration between Sony and PROPHESEE.
Prophesee also offers unlimited evaluation access to the most extensive Event-Based Vision software suite available to date, the largest open-source platform as well as extensive support and documentation resources.
PRODUCT RANGE
USB Cameras
Plug-and-play Metavision® USB cameras, ideal for first hands-on PC evaluation.
With IMX636 realized in collaboration between Sony and PROPHESEE, and new GenX320, world’s smallest and most power-efficient Event-based vision sensor.

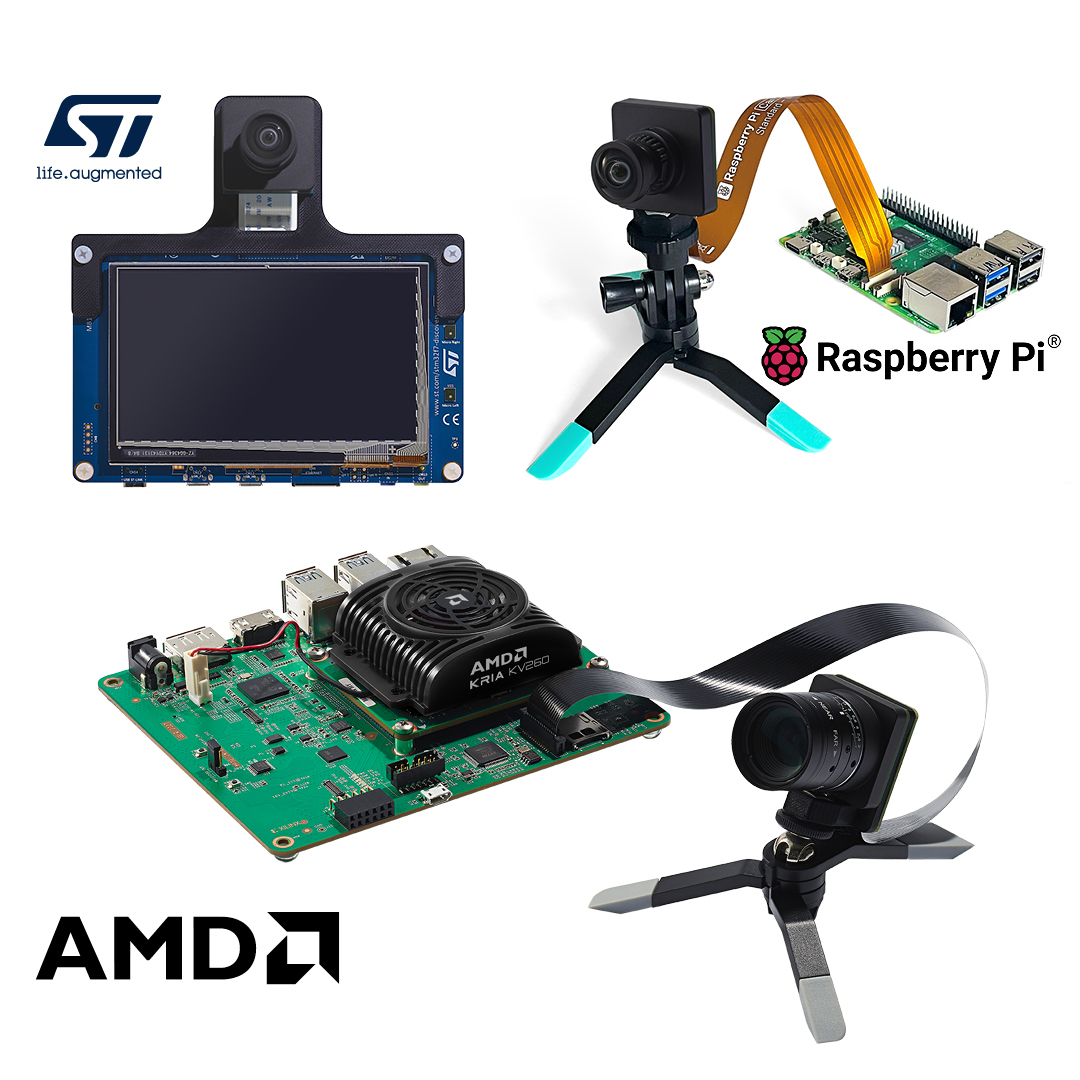

Embedded Starter Kits
Comprehensive FPGA and MCU based development platforms for prototyping and development of embedded systems and applications.
With IMX636 realized in collaboration between Sony and PROPHESEE, and new GenX320, world’s smallest and most power-efficient Event-based vision sensor.
USB CAMERAS

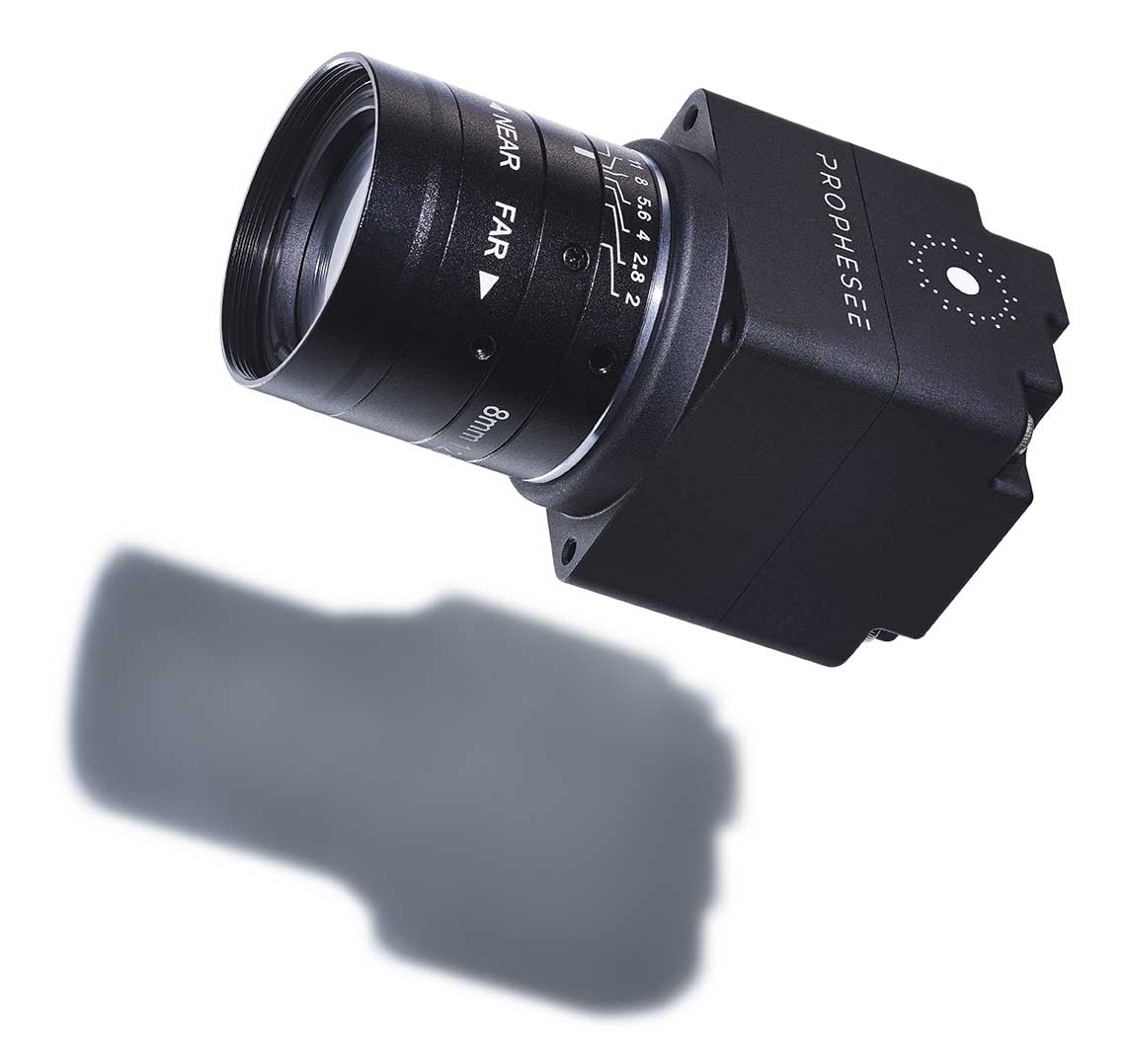

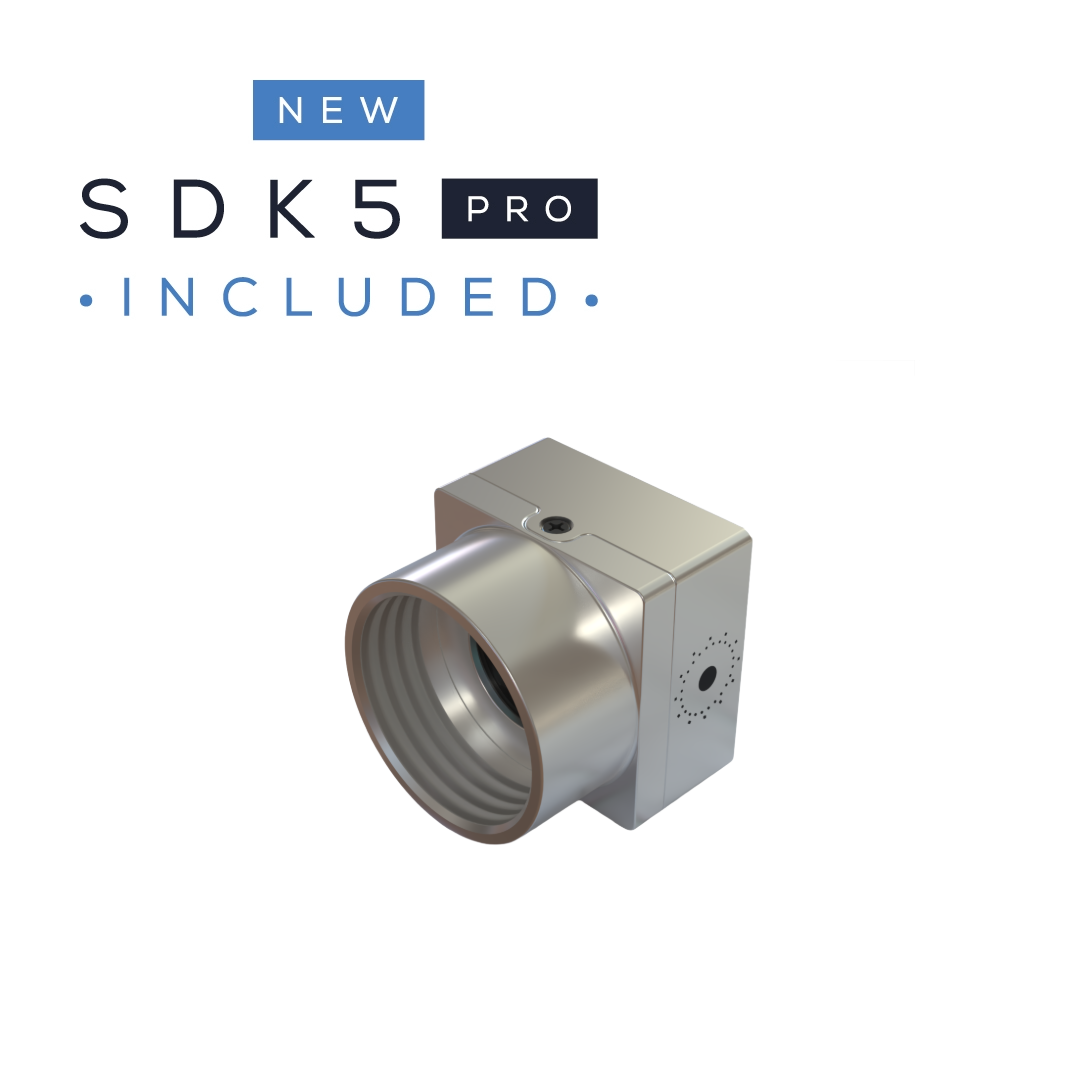

Metavision® EVK4 – HD
Ultra-light and compact HD Metavision® Evaluation Kit built to endure field testing conditions.
With IMX636 (1280x720px) realized in collaboration between Sony and PROPHESEE.
KEY FEATURES
- Latency @1k lux: <220 μs
- Ultra-compact and light: 30x30x36mm, weighing just 40g
- Built to endure (IEC certifications for T° / Heat / Shocks / Electrostatic discharge)
- USB 3.0 Type-C connectivity
- High Quality Aluminum alloy casing
- Easy to embed: 4x M2 front + 2x M2.6 back fixing points
- C/CS mount
- Maximum system bandwidth: 1.6 Gbps
- Maximum system power 1.5W, powered via USB
- Synchronization interface
- Access to the most comprehensive Event-Based Vision software toolkit: Metavision® SDK5 PRO*
SUPPORTED SENSORS
- IMX636 (1280x720px), realized in collaboration between Sony and PROPHESEE
SUPPORT
- 2-hour premium support
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).

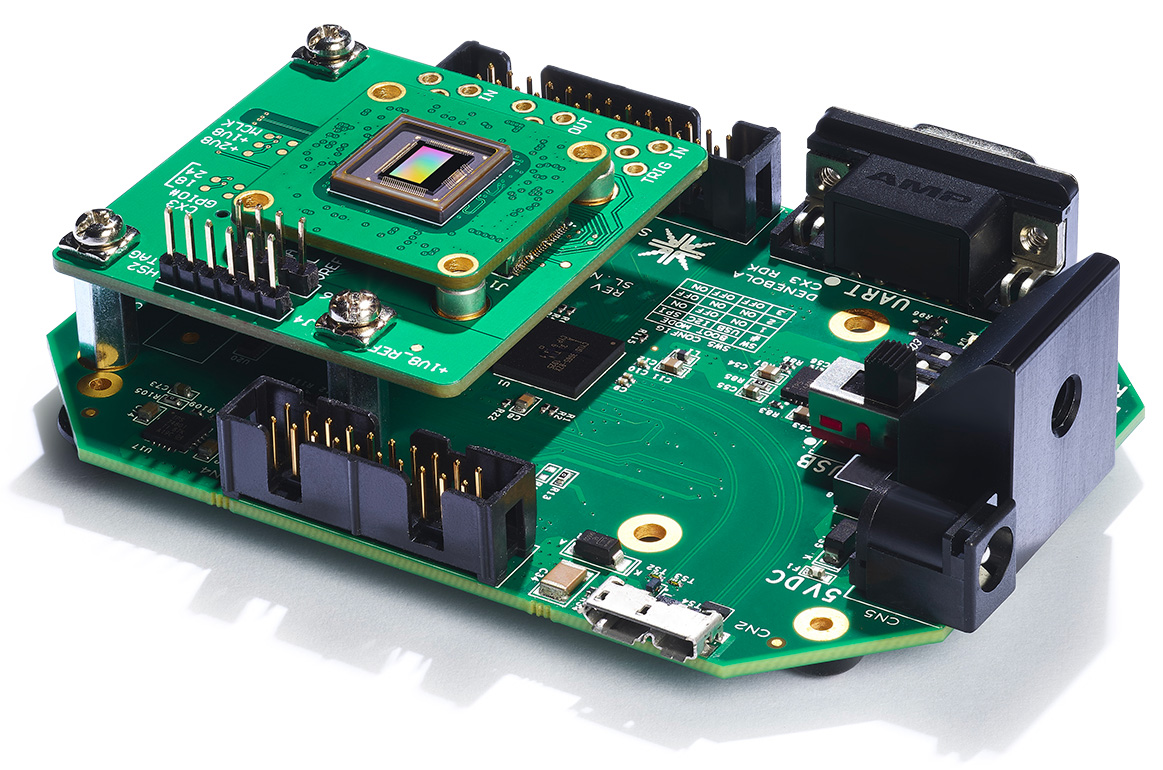

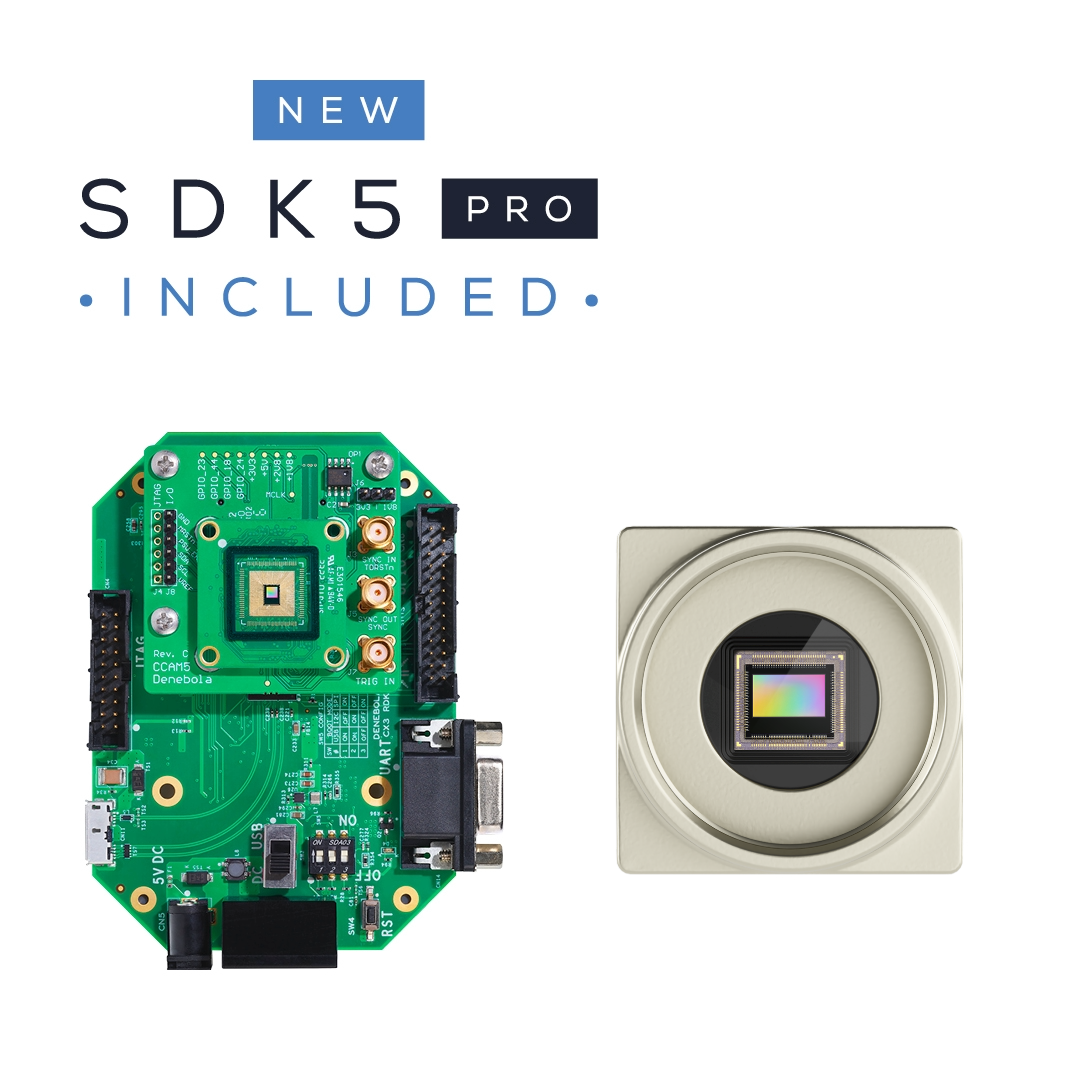

NEW Metavision® EVK3 – GENX320
Board level Metavision® Evaluation Kit, ideal for first hands-on evaluation.
With the new GenX320 (320x320px), world’s smallest and most power-efficient Event-based vision sensor
KEY FEATURES
- Latency @1k lux: <150 μs
- USB 3.0 Micro-B and SMA connectivity
- Maximum system power 4.5W, powered via USB
- Optical Flex module / COB module and S mount versions available
- Synchronization interface
- Access to the most comprehensive Event-Based Vision software toolkit: Metavision® SDK5 PRO*
SUPPORTED SENSORS
- GenX320 (320x320px) CCAM5 (Sensor board with C-mount optics)
- GenX320 (320x320px) CM2 (Flex Optical Module with 104° DFoV f/2.4 M6 lens)
SUPPORT
- 2-hour premium support
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).
ACADEMICS, USE CODE ACADEMIC20 FOR 20% OFF ON YOUR PURCHASE
Metavision® EVK3 – HD
Board level HD Metavision® Evaluation Kit, ideal for first hands-on, cost-efficient evaluation.
With IMX636 (1280x720px) realized in collaboration between Sony and PROPHESEE.
KEY FEATURES
- USB 3.0 Micro-B connectivity
- Maximum system bandwidth: 1.6 Gbps
- Maximum system power 4.5W, powered via USB
- CS / S mount versions available
- Synchronization interface
- Access to the most comprehensive Event-Based Vision software toolkit: Metavision® SDK5 PRO*
SUPPORTED SENSORS
- IMX636 (1280x720px), realized in collaboration between Sony and PROPHESEE
SUPPORT
- 2-hour premium support
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).
*For every USB Camera purchased after Oct 7, 2024
EMBEDDED STARTER KITS

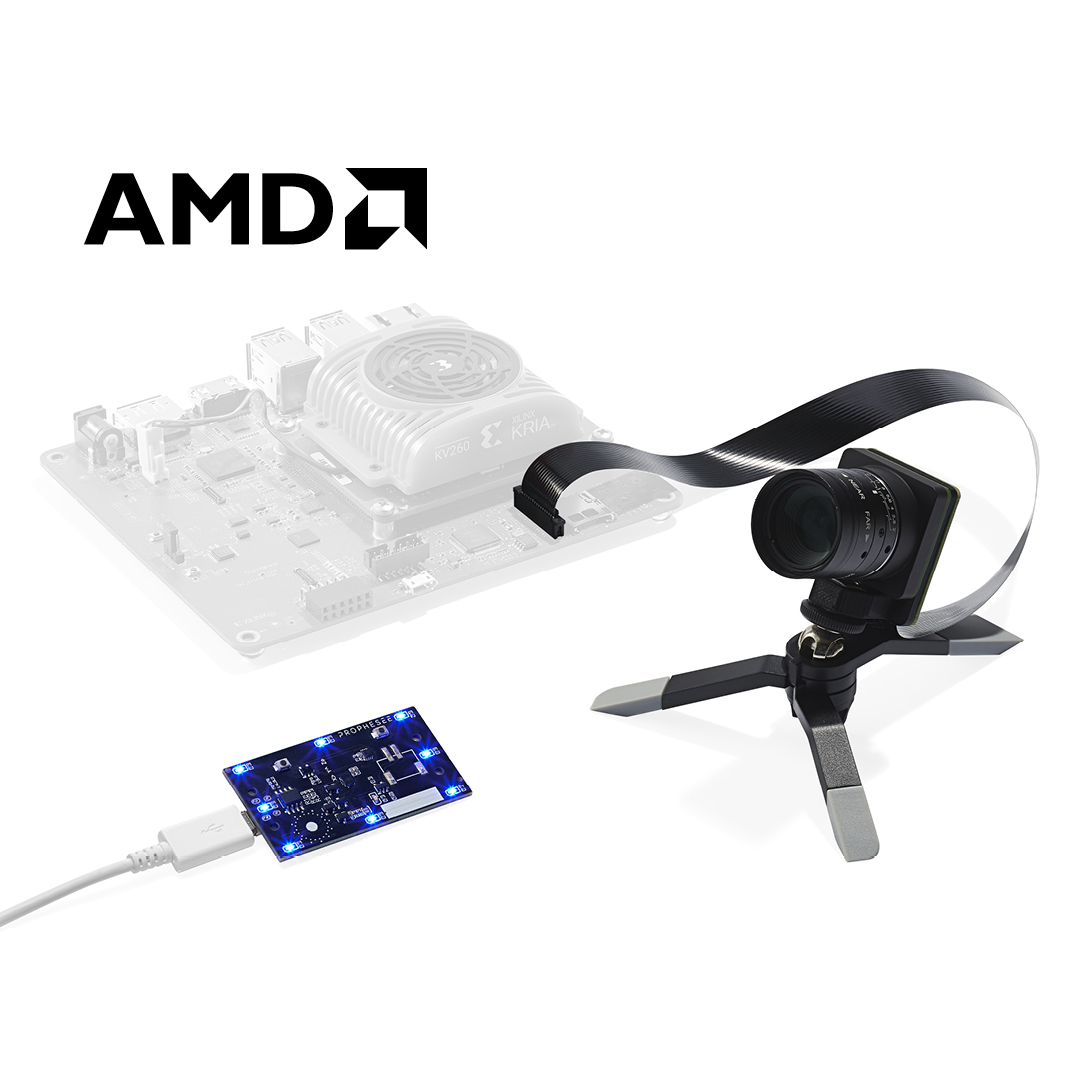

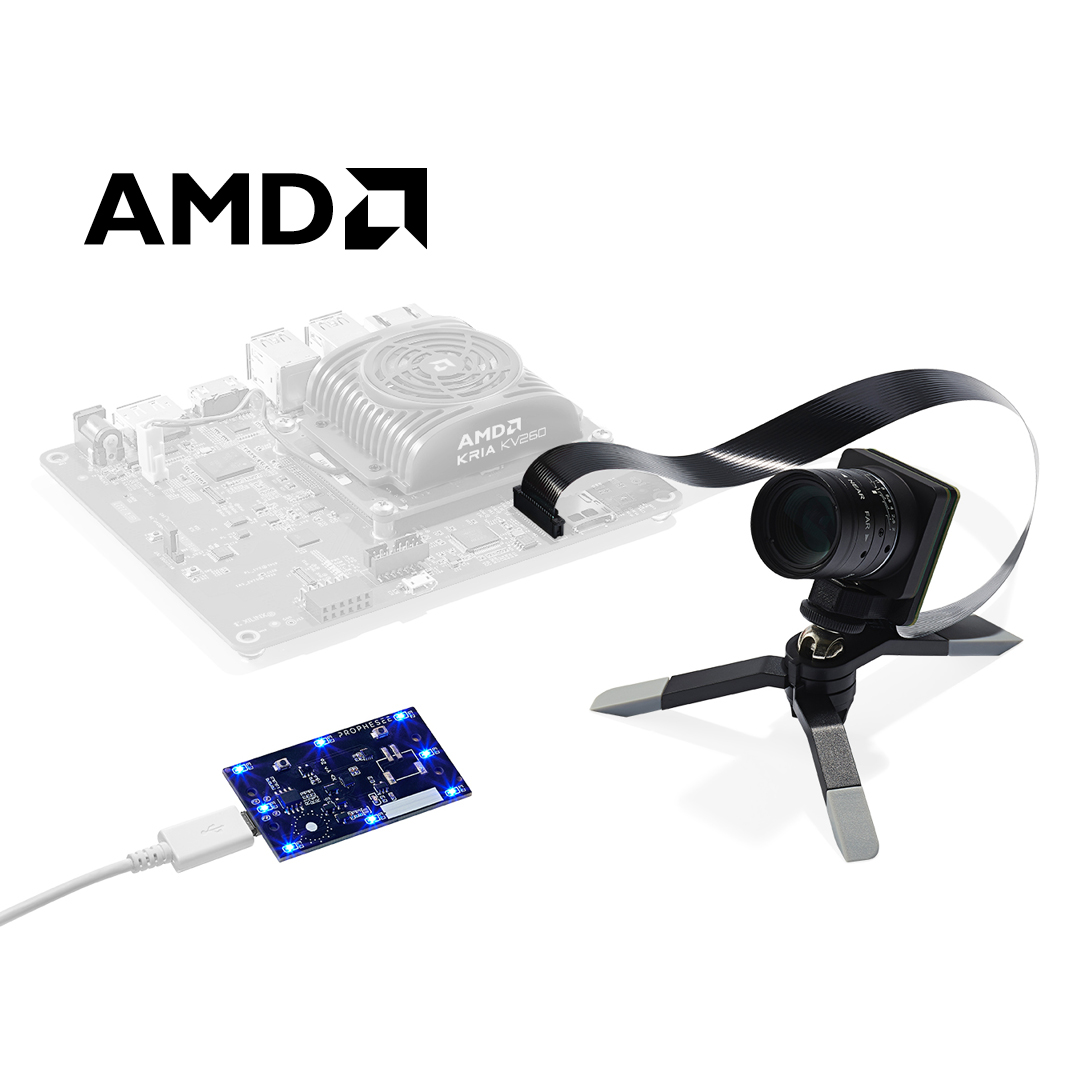

NEW Metavision Starter Kit –
AMD Kria KV260 (IMX636 and GenX320)
Evaluate and develop powerful event based embedded vision systems on the AMD Kria KV260 FPGA development board (available from AMD). Enables rapid product development with powerful customizable application algorithm examples.
Features the ultra high speed and low latency HD event sensor IMX636 (1280x720px) realized in collaboration between Sony and PROPHESEE and the new GenX320 (320x320px), world’s smallest and most power-efficient Event-based vision sensor.
KEY FEATURES
- Development kit Sony/Prophesee IMX636 module and Prophesee GenX320 module for KV26 SOM devices with C-Mount lens and S-Mount lens respectively
- The sensor hardware is connected through the KV260 development board RPi interface
- Delivered with an active marker demo and an LED tracking circuit board
SUPPORTED SENSORS
- IMX636 (1280x720px) CCAM5 (Sensor board with C-mount optics)
- GenX320 (320x320px) CCAM5 (Sensor board with S-mount optics)
SUPPORT
- 2-hour premium support
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).
ACADEMICS, USE CODE ACADEMIC20 FOR 20% OFF ON YOUR PURCHASE

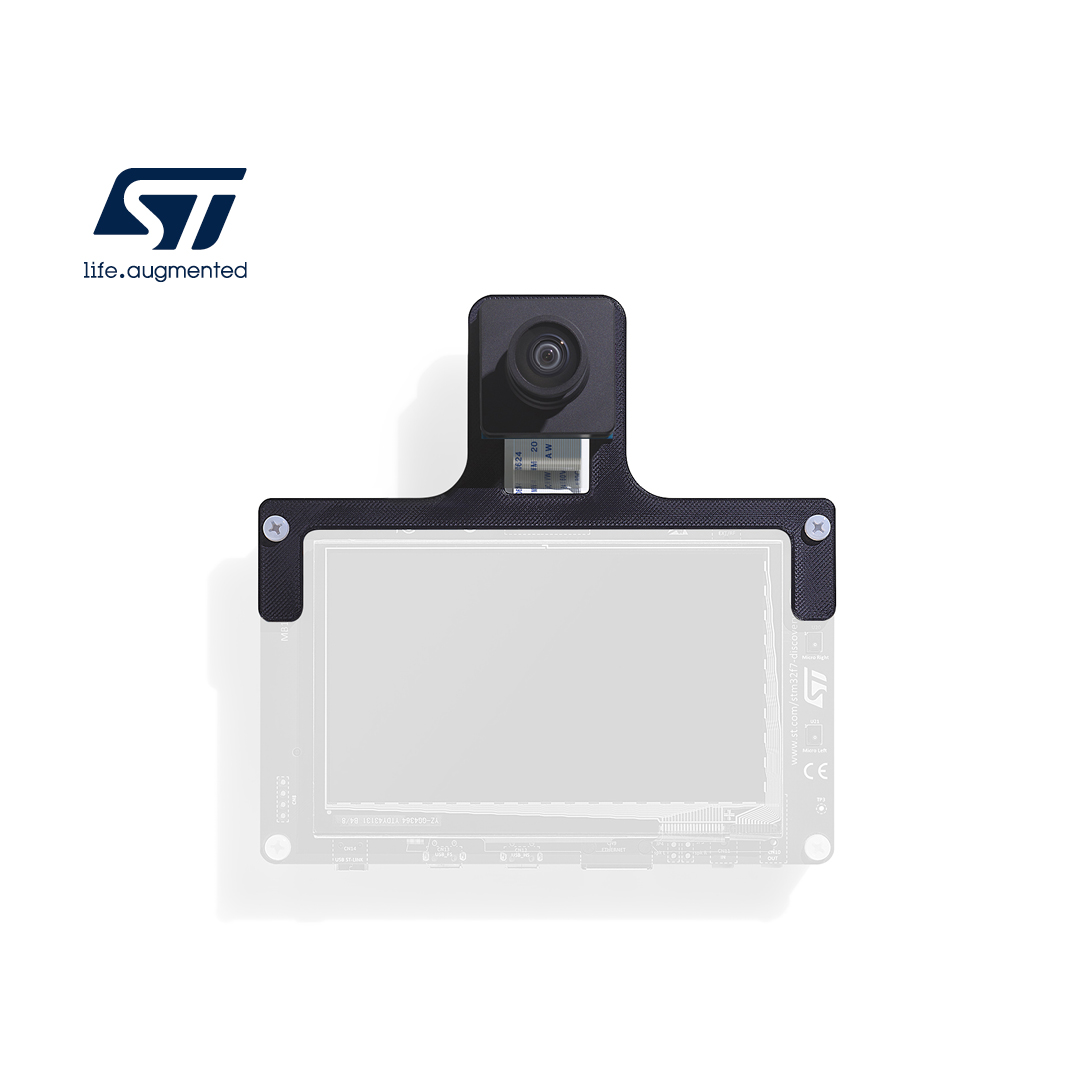

Metavision Starter Kit –
STM32F7 (GenX320)
Flexible development kit optimized for plug-and-play use with STM32-F7 MCU discovery kit (available from ST Microelectronics). Includes software to enable low-power and low end-to-end latency event processing for embedded vision systems.
Features the new GenX320 (320x320px), world’s smallest and most power-efficient Event-based vision sensor ideal for edge AI, smart home, and many other market applications.
KEY FEATURES
- Development kit Prophesee GenX320 module and interface for STM32 devices with S-Mount lens or GenX320 CM2 compact module
- The GenX320 sensor is connected through the STM32 DCMI parallel interface
- Delivered with an application to visualize events on the 4.3” WQVGA TFT LCD programmed in Flash.
SUPPORTED SENSORS
- GenX320 (320x320px) CCAM5 (Sensor board with C-mount optics)
- GenX320 (320x320px) CM2 (Flex Optical Module with 104° DFoV f/2.4 M6 lens)
SUPPORT
- 2-hour premium support
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).
ACADEMICS, USE CODE ACADEMIC20 FOR 20% OFF ON YOUR PURCHASE

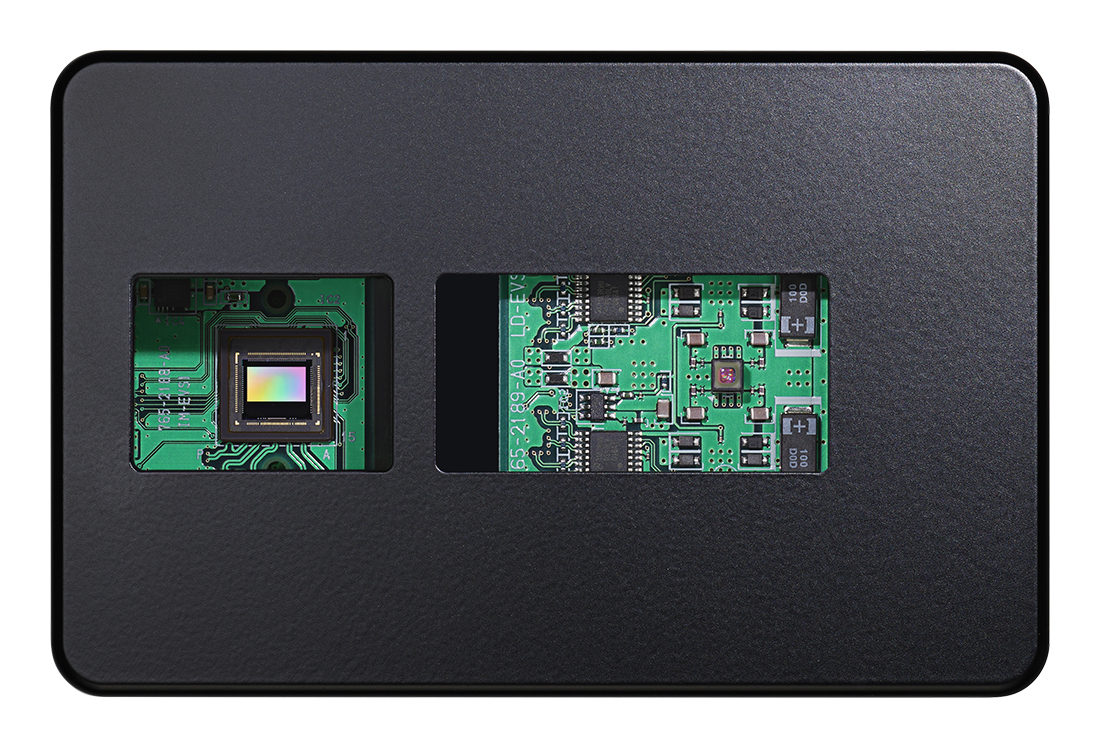

NEW Evaluation Kit 3D Structured light (IMX636)
Introducing the world’s fastest 3D structured light system to date. Experience event-based, ultra-fast 500Hz point cloud generation, in a plug-and-play evaluation kit, while maintaining a <1.5% RMSE.
Features the ultra high speed and low latency HD event sensor IMX636 (1280x720px) realized in collaboration between Sony and PROPHESEE
ADVANCED TOOLKIT
Complementary access to an advanced set of tools composed of a support portal, drivers, open-source platform, SDK, tutorials, reference data and much more.
We are sharing an advanced toolkit so you can start building your own vision.
THE MOST COMPREHENSIVE EVENT-BASED VISION SOFTWARE SUITE
64 algorithms, 105 code samples and 17 tutorials in total to let you evaluate, design and sell your own Metavision product.
SUPPORT RESOURCES
With EVK purchase, get access to 2H premium support as well as our privileged Knowledge Center, including over 110 articles, application notes, in-depth technology discovery material, step-by-step guides and initial support from our expert team.
OPEN SOURCE ARCHITECTURE
Metavision SDK is based on an open source architecture, unlocking full interoperability between our software and hardware devices and enabling a fast-growing Event-Based community.
EXTENSIVE DOCUMENTATION
With 300+ pages of regularly updated content on docs.prophesee.ai, programming guides, reference data, detailed recommendations, get a head start on your product development.
