The ultra high-speed,
low latency Kria KV260 starter kit
Take full advantage of Prophesee Event-based Metavision® Sensor and AI performance, power and speed to create the
next generation of Edge AI machine vision applications.
Experience exceptional computer vision performance with industry-first Event-based Vision solution running on market-leading FPGA-based AMD Kria™ Vision AI platform.
Evaluate and execute rapid product development of event based embedded vision systems thanks to plug-and-play hardware, software drivers and powerful customizable application algorithm examples.
Metavision® Starter Kit KV260 – IMX636
- 1280x720px resolution
- Ultra-high speed 100μs
- >120dB dynamic range
- Applications: Industrial Automation, Security Cameras, Intelligent Traffic Systems

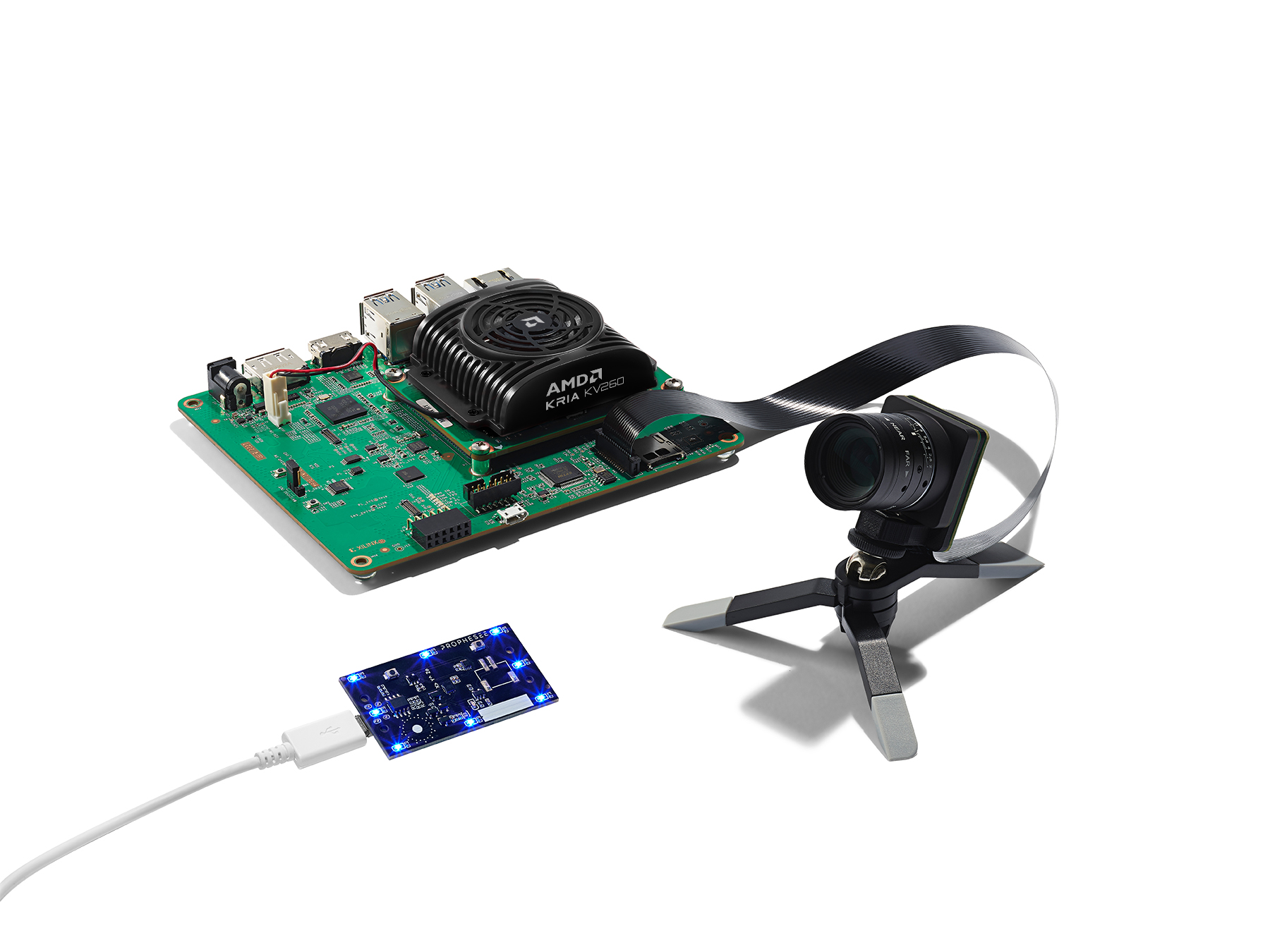

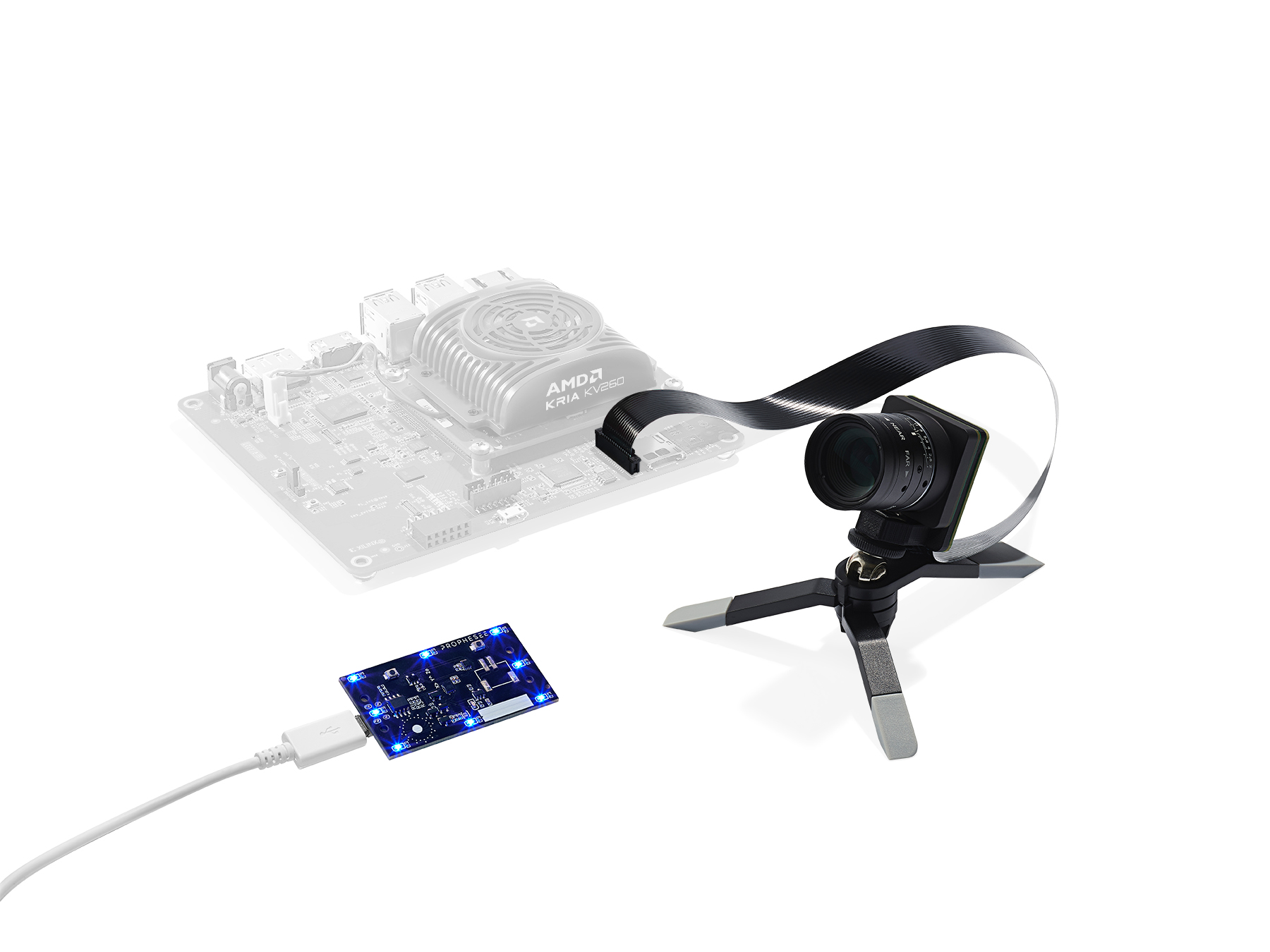

Metavision® Starter Kit KV260 – IMX636
Ultra high speed and low latency HD embedded vision system built on AMD Kria KV260
With IMX636 realized in collaboration between Sony and PROPHESEE.
KEY FEATURES
- Development kit Sony/Prophesee IMX636 module for KV26 SOM devices with C-Mount lens
- The sensor hardware is connected through the KV260 development board RPi interface
- Delivered with an active markers application demo and a 6DOF (Degrees of Freedom) LED circuit board
- Low latency <100 μs @1k lux:, with native high dynamic range >120 dB
- Integrates the IMX636 1/2.5 inch format Event-based Vision Sensor with approx. 0.92 M Effective Pixels
- 1280 ×720 array of 4.86μm contrast detection pixels
- Ultra high-speed event data output (equivalent to >10kfps time resolution) with 1μs-precision time stamping
- 0.08 lux Low light cutoff with high dynamic range >120dB
SUPPORTED SENSORS
- IMX636 CCAM5 (Sensor board with C-mount optics)
SUPPORT
- 2H premium support
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).
Markets and applications
![08_ParticleSizeMonitoring](/wp-content/uploads/2021/05/08_ParticleSizeMonitoring.jpg)
Industrial Automation
- Counting, Measuring
- Inspection, Robot/AMR guidance
- Machine Learning
- Active marker based 3D pose estimation
- Preventative Maintenance
![03_ObjectTracking copia](/wp-content/uploads/2021/05/03_ObjectTracking-copia.jpg)
Security Cameras
- Traffic monitoring
- Intelligent Traffic Systems
- Fall Detection Cameras

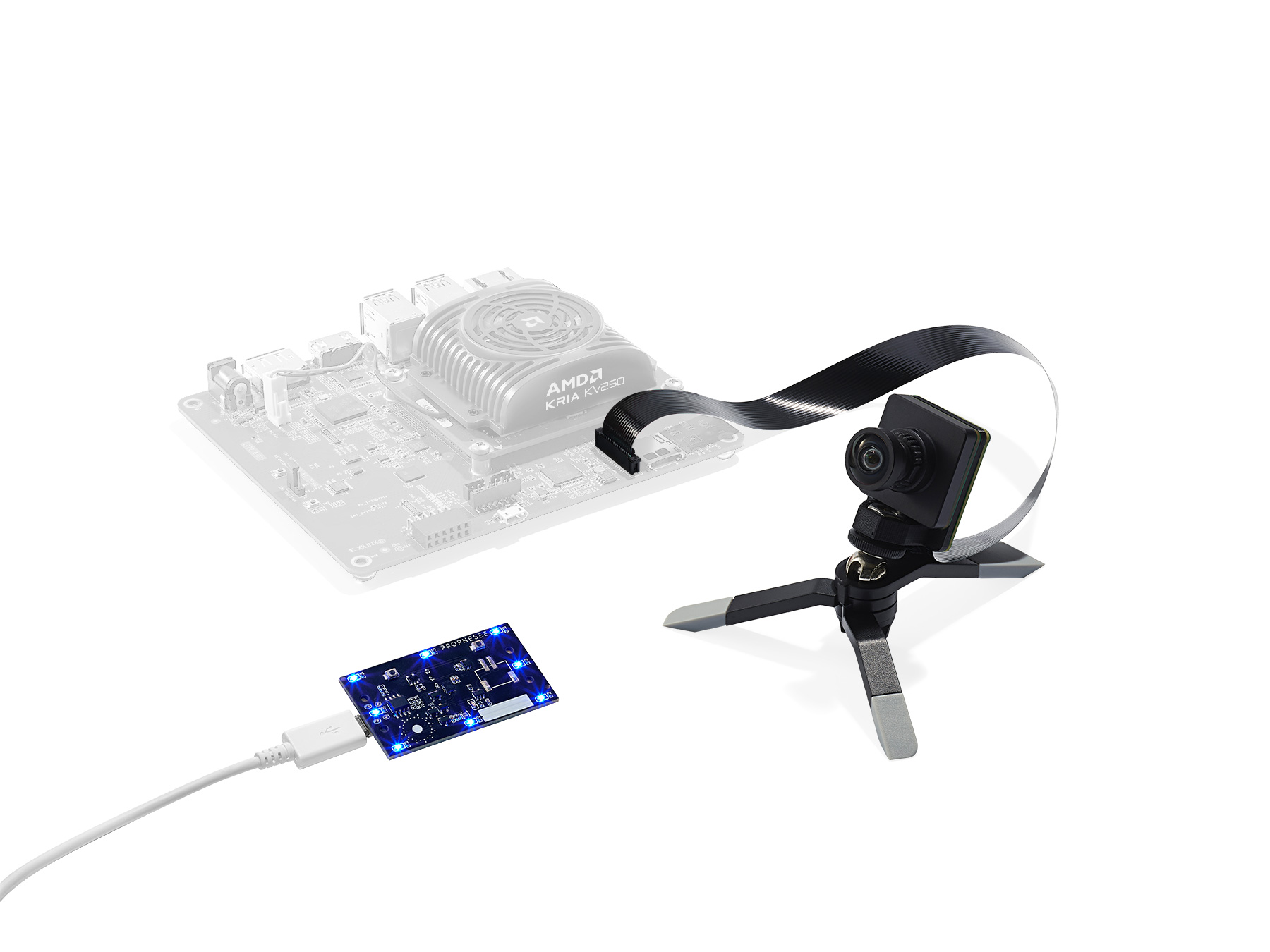

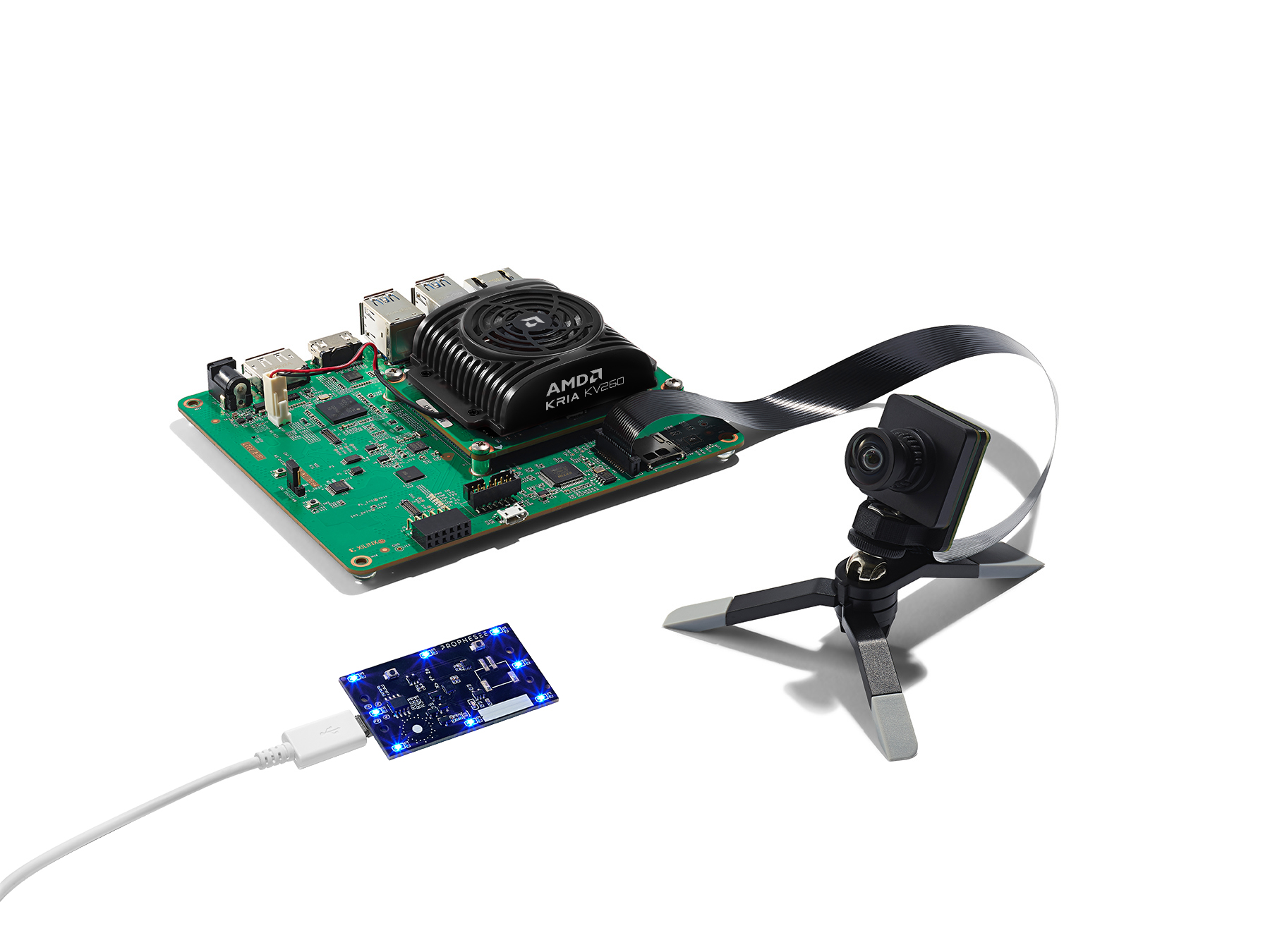

Metavision® Starter Kit KV260 – GenX320
Ultra high speed and low latency HD embedded vision system built on AMD Kria KV260
With the new GenX320, world’s smallest and most power-efficient Event-based vision sensor
KEY FEATURES
- Prophesee GenX320 development kit module with S-Mount lens for Kria KV260 Vision AI Starter Kit
- The sensor module connects to the KV260 via the 15-pin Raspberry Pi camera connector interface
- Delivered with LED active marker circuit board and 6DoF (degrees of freedom) detection and tracking demo application
- Low latency <150 μs @1k lux, with native high dynamic range >120 dB
- Integrates the GenX320 1/5 inch format Event-based Vision Sensor
- 320×320 array of 6.3μm contrast detection pixels
- Ultra high-speed event data output (equivalent to >10kfps time resolution) with 1μs-precision time stamping
- 0.08 lux Low light cutoff with high dynamic range >120dB
SUPPORTED SENSORS
- GenX320 CCAM5 (Sensor board with S-mount optics)
SUPPORT
- 2H premium support
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).
Markets and applications
![09_EdgeletTracking](/wp-content/uploads/2021/05/09_EdgeletTracking.jpg)
Industrial Automation
- Counting, Measuring
- Inspection, Robot/AMR guidance
- Machine Learning
- Active marker based 3D pose estimation
- Preventative Maintenance
![Consumer-Applications](/wp-content/uploads/2024/05/Consumer-Applications.jpg)
IoT edge devices and Smart Cities
- People counting and tracking
- Speed/Trajectory measurement
- AI on-the-edge cameras
Metavision Active Marker Demo Application
A breakthrough plug-and-play Active Markers Tracking application is included in this kit.
This application highlights unique features of Prophesee’s event-based Metavision technologies. It enables a new range of ultra high-speed tracking use cases such as game controller tracking, machine / construction site safety, heavy load anti-sway systems and many more.
Prophese’s event-based Metavision sensors reach ultra high temporal resolution and feature unique pixel-intelligent design. This enables high-speed detection and tracking of LED light pulses, total background extraction and real-time 3D pose information.
>1,000Hz 3D pose estimation
Complete background rejection at pixel level
Extreme robustness to challenging lighting conditions
Advanced Toolkit
Complementary access to an advanced set of tools composed of a support portal, drivers, open-source platform, tutorials, reference data and much more.
We are sharing an advanced toolkit so you can start building your own vision.
SUPPORT RESOURCES
With the Metavision Starter Kit purchase, get access to 2H premium support as well as our privileged Knowledge Center, including over 110 articles, application notes, in-depth technology discovery material, step-by-step guides and initial support from our expert team.
EXTENSIVE DOCUMENTATION
With 300+ pages of regularly updated content on docs.prophesee.ai, programming guides, reference data, detailed recommendations, get a head start on your product development.
