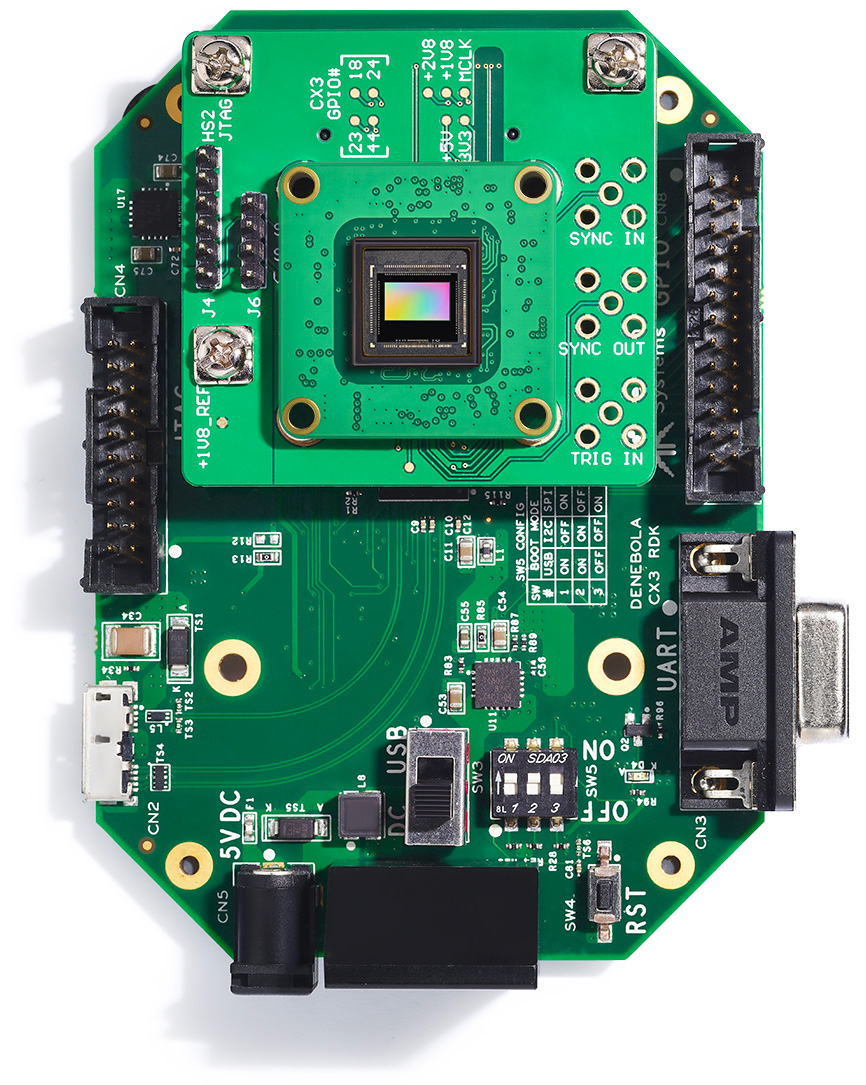

Start evaluation of breakthrough stacked Event-based Vision Sensor realized in collaboration between Sony and PROPHESEE
This sensor was made possible by combining Sony’s CMOS image sensor technology with Prophesee’s unique Event-Based Metavision sensing technology
Sony IMX636 co-developed with Prophesee
1/2.5 inch format event-based vision sensor with approx 0.92 M effective pixels
KEY FEATURES
- Resolution (px) 1280 x 720
- Optical format: 1/2.5”
- Pixel latency @ 1000 lux (μs) <100
- Pixel latency @ 5 lux (μs) <1000
- Dynamic Range* (dB) >86 (5 lux – 100 klux) / >120 (80 mlux – 100klux)
- Maximum clock frequency (MHz) 100
- Nominal contrast threshold (%) 25
- Standby power (mW) 5
- Maximum power (mW) 150
- Pixel size (μm) 4.86 x 4.86
- Event Signal Processing embedded
*5 lux is the minimum light condition that guarantees imaging characteristics. Low-light cut-off (not guaranteed) is 0.08 lux.
Markets and applications
![09_EdgeletTracking](/wp-content/uploads/2021/05/09_EdgeletTracking.jpg)
Industrial Automation
- Counting, Measuring
- Machine Learning
- Active marker based 3D pose estimation
- Preventative Maintenance
![Robotics-Applications](/wp-content/uploads/2024/05/Robotics-Applications.jpg)
Robotics
- Part pick and place
- Robot Guidance
- Trajectory monitoring
![03_ObjectTracking copia](/wp-content/uploads/2021/05/03_ObjectTracking-copia.jpg)
Security
- Traffic monitoring
- Intelligent Traffic Systems
- Fall Detection Cameras

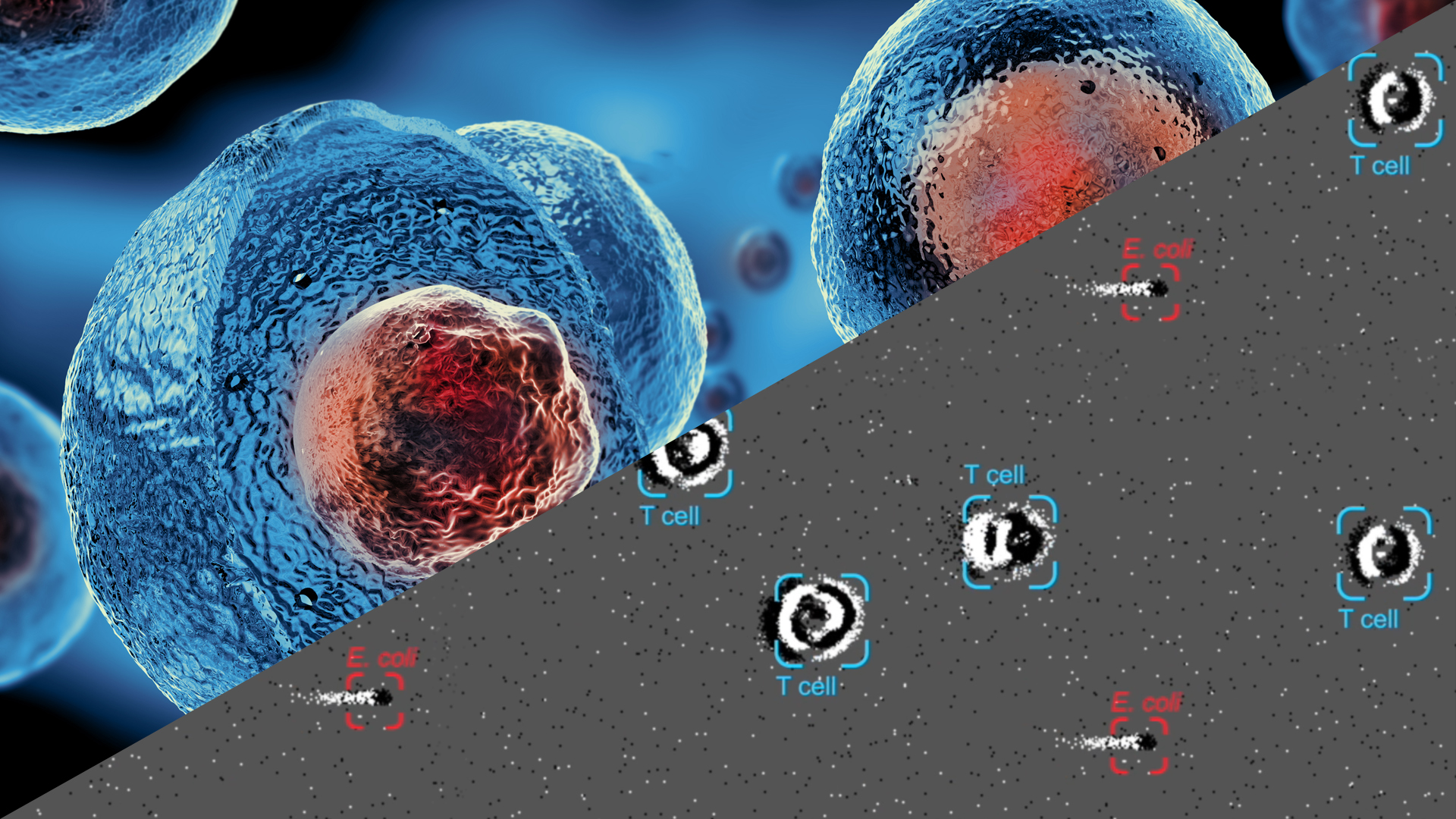

![15_CambridgeConsultant copia](/wp-content/uploads/2021/06/15_CambridgeConsultant-copia-1.jpg)
Scientific Measurement
- Live sample sterility testing for gene therapy
- Vision restoration
- Blood cell tracking
ADVANCED TOOLKIT
With Evaluation Kits purchases come complementary access to an advanced set of tools composed of a support portal, drivers, open-source platform, SDK, tutorials, reference data and much more.
We are sharing an advanced toolkit so you can start building your own vision.
THE MOST COMPREHENSIVE EVENT-BASED VISION SOFTWARE SUITE
95 algorithms, 67 code samples and 11 ready-to-use applications in total so you can either start your discovery or build your Event-Based Vision product.
SUPPORT RESOURCES
With EVK purchase, get access to our privileged Knowledge Center, including over 110 articles, application notes, in-depth technology discovery material, step-by-step guides and initial support from our expert team.
OPEN SOURCE ARCHITECTURE
Metavision Intelligence Suite is based on an open source architecture, unlocking full interoperability between our software and hardware devices and enabling a fast-growing Event-Based community.
EXTENSIVE DOCUMENTATION
With 270+ pages of regularly updated content on docs.prophesee.ai, more than 20 Jupyter notebooks, reference data and extensive guidelines and numerous datasets get a head start on your product development.
