The ultra high-speed,
low latency IMX636 Kria KV260 starter kit
Take full advantage of Prophesee Event-based Metavision® Sensor and AI performance, power and speed to create the
next generation of Edge AI machine vision applications.
Experience exceptional computer vision performance with industry-first Event-based Vision solution running on market-leading FPGA-based AMD Kria™ Vision AI platform.
Evaluate and execute rapid product development of event based embedded vision systems thanks to plug-and-play hardware, software drivers and powerful customizable application algorithm examples.
1280x720px
Resolution
>10k fps
Time resolution equivalent
>120dB
Dynamic Range
0.08 Lux
Low light cutoff
Metavision® Starter Kit – KV260
Ultra high speed and low latency HD embedded vision system built on AMD Kria KV260
With IMX636 realized in collaboration between Sony and PROPHESEE.
KEY FEATURES
- Development kit Sony/Prophesee IMX636 module for KV26 SOM devices with C-Mount lens
- The sensor hardware is connected through the KV260 development board RPi interface
- Delivered with an active marker demo and an LED tracking circuit board
- Low latency <100 μs @1k lux:, with native high dynamic range >120 dB
- Integrates the IMX636 1/2.5 inch format Event-based Vision Sensor with approx. 0.92 M Effective Pixels
- 1280 ×720 array of 4.86μm contrast detection pixels
- Ultra high-speed event data output (equivalent to >10kfps time resolution) with 1μs-precision time stamping
- 0.08 lux Low light cutoff with high dynamic range >120dB
SUPPORTED SENSORS
SUPPORT
- 2H premium support
- Knowledge Center access (Technical app notes, advanced hardware manuals, Personal ticketing tool, Community Forum and more).
Metavision Active Marker Demo Application
A breakthrough plug-and-play Active Markers Tracking application is included in this kit.
This application highlights unique features of Prophesee’s event-based Metavision technologies. It enables a new range of ultra high-speed tracking use cases such as game controller tracking, machine / construction site safety, heavy load anti-sway systems and many more.
Prophese’s event-based Metavision sensors reach ultra high temporal resolution and feature unique pixel-intelligent design. This enables high-speed detection and tracking of LED light pulses, total background extraction and real-time 3D pose information.
>1,000Hz 3D pose estimation
Complete background rejection at pixel level
Extreme robustness to challenging lighting conditions
Markets and applications
Industrial Automation

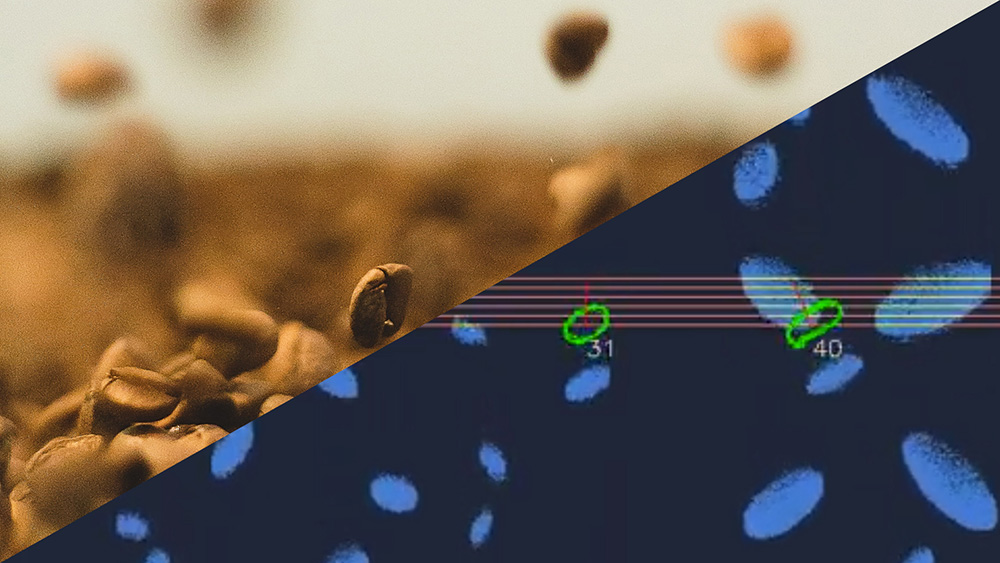

- Counting, Measuring

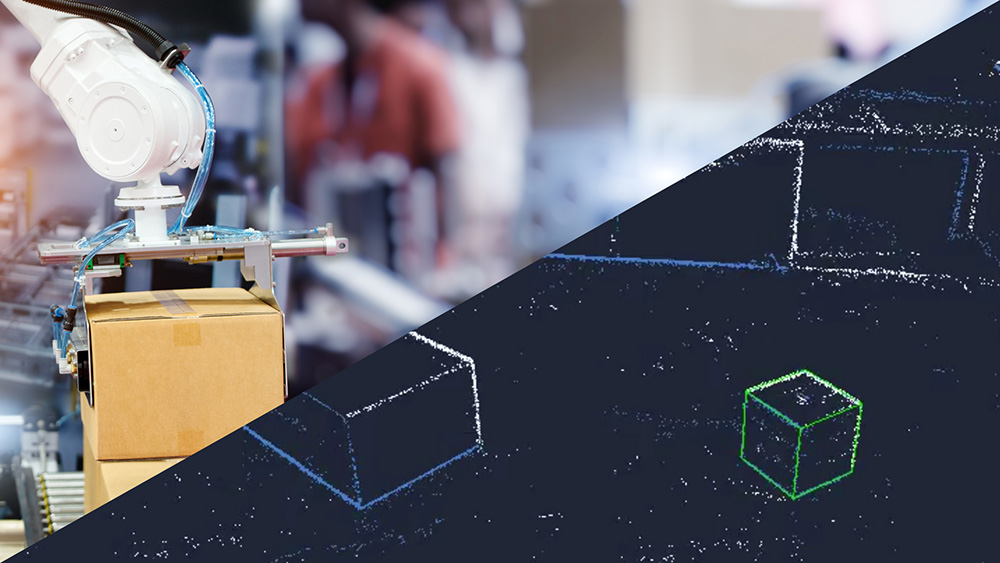

- Inspection, Robot/AMR guidance
- Machine Learning
- Active marker based 3D pose estimation
- Preventative Maintenance
IoT edge devices and Smart Cities
- People counting and tracking
- Speed/Trajectory measurement
- AI on-the-edge cameras
Security Cameras

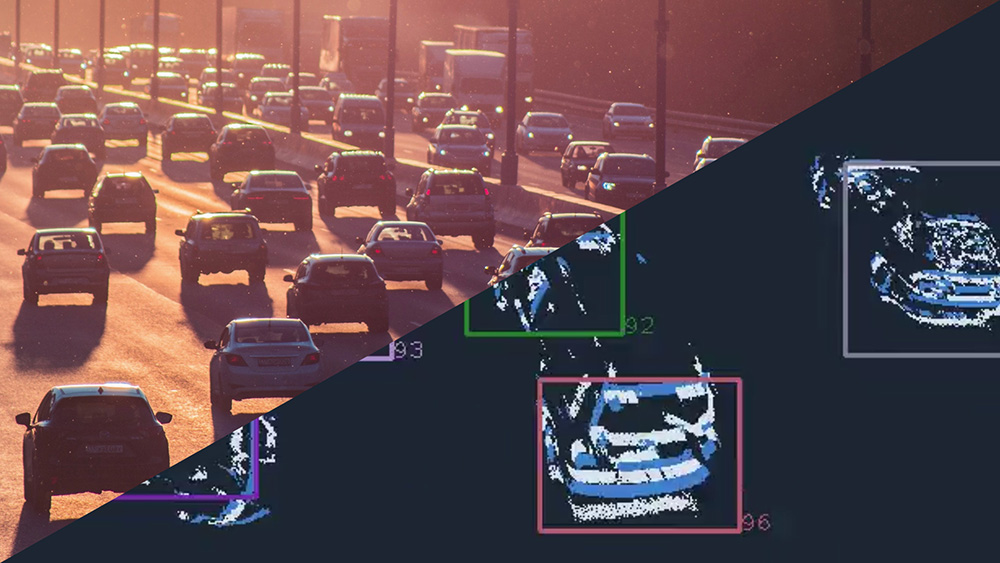

- Traffic monitoring
- Intelligent Traffic Systems
- Fall Detection Cameras
IMX636 (HD)
Start evaluation of breakthrough stacked Event-based Vision Sensor realized in collaboration between Sony and PROPHESEE.
This sensor was made possible by combining Sony’s CMOS image sensor technology with Prophesee’s unique Event-Based Metavision sensing technology.
KEY FEATURES
- Resolution (px) 1280 x 720
- Optical format: 1/2.5”
- Pixel latency (μs) <100
- Dynamic Range (dB) >86* / >120**
- Nominal contrast threshold (%) 25
- Pixel size (μm) 4.86 x 4.86
- Event Signal Processing embedded
* DR >86dB (5 lux – 100000 lux) 5 lux is the minimum light level guaranteeing inclusion of all possible operating points.
**DR >120 dB (Low-light cut-off 0.08 lux – 100000 lux) Low-light cut-off is the minimum light level guaranteeing nominal contrast sensitivity. For many typical applications, the sensor data are actionable down to this light level. 100000 lux is a virtual high-light limit, not experienced in experiment.
ADVANCED TOOLKIT
Complementary access to an advanced set of tools composed of a support portal, drivers, open-source platform, tutorials, reference data and much more.
We are sharing an advanced toolkit so you can start building your own vision.
OPEN SOURCE ARCHITECTURE
Prophesee software is based on an open source architecture, unlocking full interoperability and enabling a fast-growing Event-Based community.
SUPPORT RESOURCES
With the Metavision Starter Kit purchase, get access to 2H premium support as well as our privileged Knowledge Center, including over 110 articles, application notes, in-depth technology discovery material, step-by-step guides and initial support from our expert team.
EXTENSIVE DOCUMENTATION
With 300+ pages of regularly updated content on docs.prophesee.ai, programming guides, reference data, detailed recommendations, get a head start on your product development.
